Long Range RFID Reader Parking System

Time of issue:

2020-05-15 12:29

Source:

1. Introduction
For the standard one entry/exit system, it includes two sets of Long Range RFID Readers, two sets of Automatic Barrier Gates, two sets of Parking Controllers, two sets of Loop Detectors and one set of PC. It can also be used in multiple entry/exit system and the principle is the same.

1) Entry Station
It mainly includes Long Range RFID Reader, Loop Detector, Entry Parking Controller, Automatic Barrier Gate and Loop coils.
The drivers stick the Long Range RFID Transponder on the car windshield. When the car enters the RFID Long Range Reader reading area, the RFID Readers will activate RFID Transponder and read its information. The Entry Parking Controller will determine its effectiveness. If it is effective, the Automatic Barrier Gate will open. After the Loop Detectors detects that the car has passed, the barrier gate will close. If the RFID Transponder is invalid, the barrier gate will not open.

2) Exit Station
It mainly includes Long Range RFID Reader, Loop Detector, Entry Parking Controller, Automatic Barrier Gate and Loop coils.
The drivers stick the RFID Long Range Transponder on the car windshield. When the car enters the RFID Long Range Reader reading area, the RFID Readers will activate RFID Transponder and read its information. The Exit Parking Controller will determine its effectiveness. If it is effective, the Automatic Barrier Gate will open. After the Loop Detectors detects that the car has passed, the barrier gate will close. If the RFID Transponder is invalid, the barrier gate will not open.

3) Management Center
The administrator can authorize the RFID Transponder in the parking software. Only the cards are authorized, can they be extendable, deleted, etc..

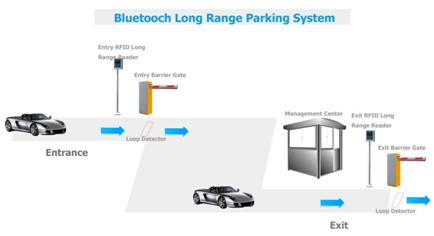

2. System Diagram

3. System Equpments
1) Long Range RFID Reader
Orientation Identification of RFID long distance reader;
Adjustment of the reading distance of RFID long distance reader;
Dormancy to Save Electricity of RFID long distance reader;
Zero-interference of RFID long distance reader;
Working Mode of RFID long distance reader;
Multiple Interface Output of RFID long distance reader;
Self-detection of the signal interference of RFID long distance reader.

2) Automatic Barrier gate
Elegant Outline, Easy Package;
Metal cabinet, adopt automotive paint, new three-baking;
Can adjust Left/right orientation on spot;
Support pressure sensors, loop sensors;
Can be equipped with an arrow display on the cabinet doors.

3) TCP/IP Parking Controller
Adopt 32-bit ARM core processor, RTOS;
RJ45 can connect to LANS;
Can connect two EM and two Mifare Card Reader;
Can connect to card dispensers and barrier gate;
Integrates digital voice module, Clear and mellow sound;
High-precision clock, Real-time calibration by network;
After normal configuration, it can work offline stand-alone.

4) Loop Detector
High temperature stability, -30℃ to 80℃;
Multi-level lightning protection;
High anti-interference capacity and stability;
Environment drift automatic compensation function;
Can be used with the barrier gates to realize anti-smash
cars and car go automatic close function.
